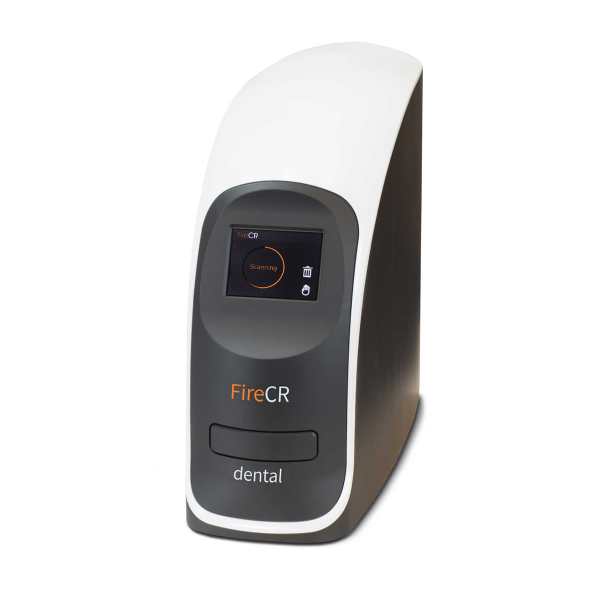

The FireCR Vet Premium Dental Reader provides fast, high-quality, high resolution dental imaging at an affordable price, making it a must have for practices wanting to provide a thorough diagnostic service for their dental patients.
The FireCR Vet Premium Dental Reader is very compact and can fit into the most space-challenged practices seamlessly.
With dental plate size 0,1,2,3,4c and 4 and the highest phosphor resolution of 21 line pairs this machine will provide you with crisp and detailed images with a fast throughput.
Simple, Streamlined Operation

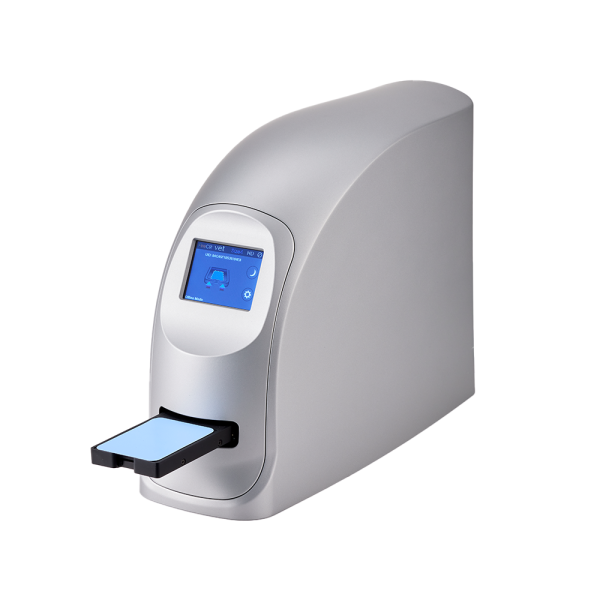

The FireCR Vet Premium Dental Readers automated, magnetised feeding tray offers “push and go” functionality, making it quick and simple to operate for busy practices. There is no complicated plate feed. The reader uses a full range of reusable intraoral imaging plates that are easier and faster to position than intra-oral digital sensors. The FireCR Premium is able to process plate size 0,1,2,3,4C and size 4. Dental templates are created quickly and easily with a ‘click and drag’ system to position your x-rays on a dental chart.
Unique LCD Colour Touch Screen Panel

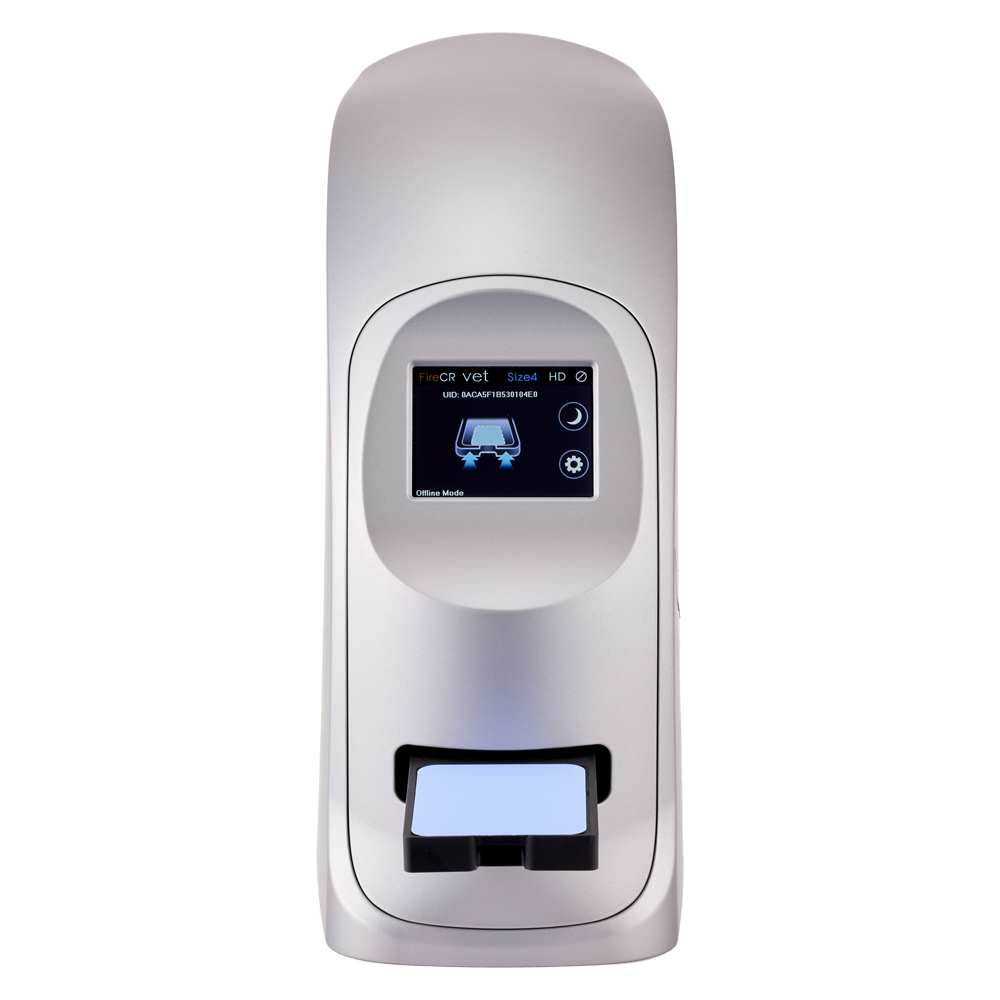

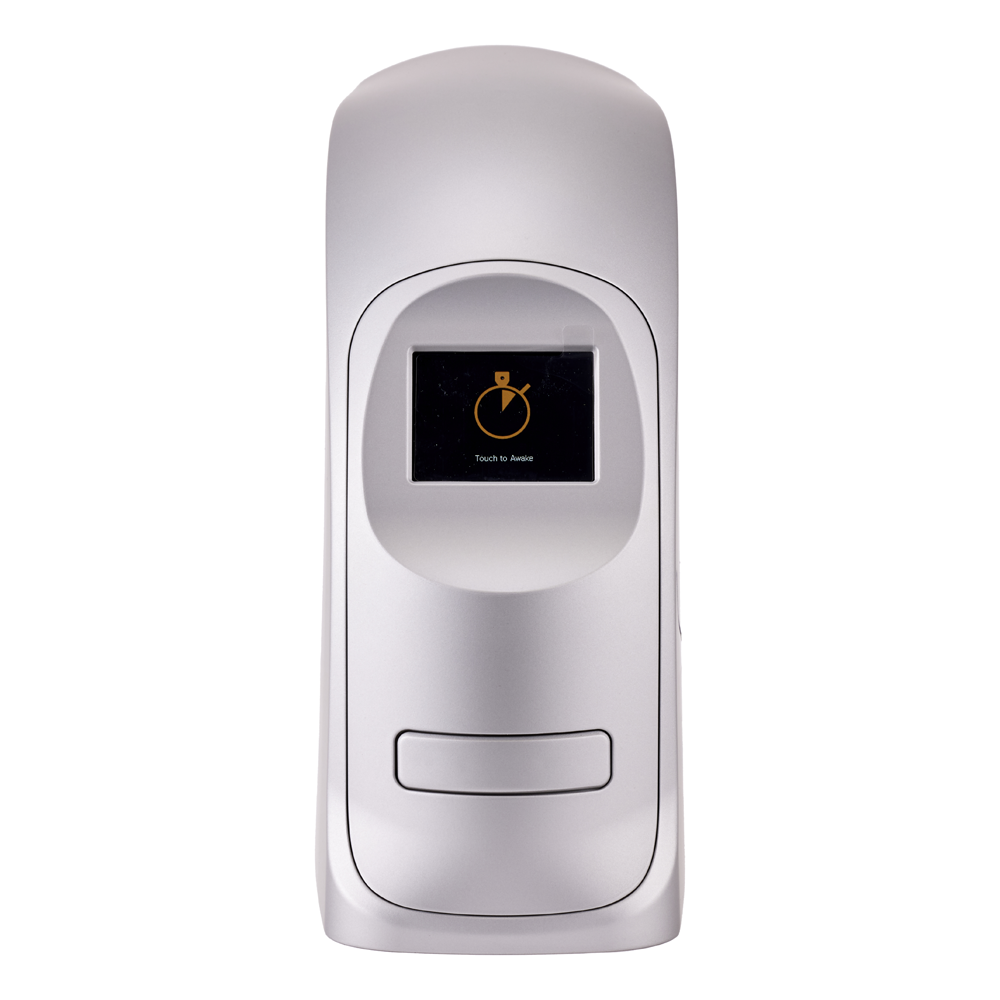

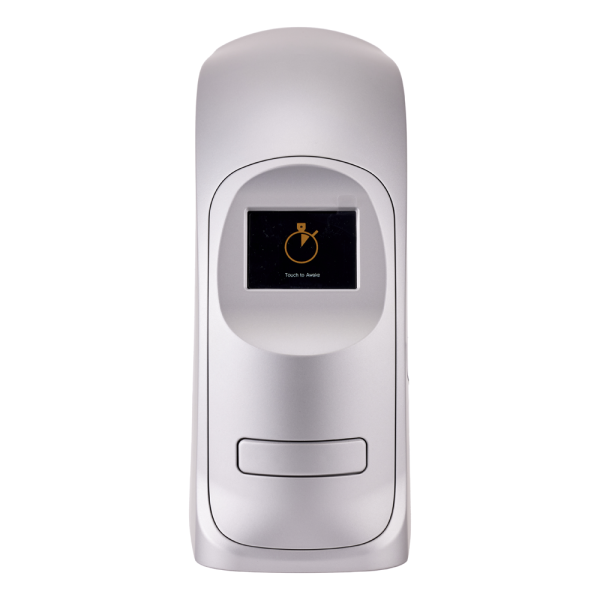

The FireCR Vet Premium Dental Reader features a unique colour LCD touch-screen panel for seamless device operation. With no physical push buttons on the unit and intuitive user interface dental x-raying has never been easier.
Easy-to-Use Imaging Software
QuantorDent Vet Imaging Software optimises image acquisition and management. The easy-to-use intuitively designed software supports efficient veterinary practice workflow.
| IP Sizes | 0 (22 x 31 mm)
1 (24 x 40 mm) 2 (31 x 41 mm) 3 (27 x 54 mm) 4c (48 x 54 mm) 4 (76 x 54 mm) |
| Supported IP Sizes | High 35µm
Standard 64µm |
| Sampling Pixel Pitch (35µm) | 21 lp/mm |
| Readabout time | 4.1 ~ 25 sec |
| Resolution | Data Capture – 16-bits per pixel, 65,000 graytones |
| Eraser | Embedded |
| System Configuration | Tabletop |
| Interface | USB 2.0 high speed (480 Mbps) / Ethernet (100 Mbps) |
| Computer Workstation Requirements | Intel Core Duo/Core 2 Processor. Min 80 Gigabytes Hard Disk, 2 Gigabyte RAM. Windows 7 and 8 (32-bit & 64-bit). NetCard (100MBit), CD/DVD, 2 USB 2.0 ports. Monitor: 1,280 x 900 pixels, DVI Interface |
| Power Requirements | 100 ~ 240V / 50 ~ 60Hz, 30W – UPS Required |
| Dimensions | 268 (H) x 124 (W) x 351 (D) mm |
| Weight | 5.4 kg |
