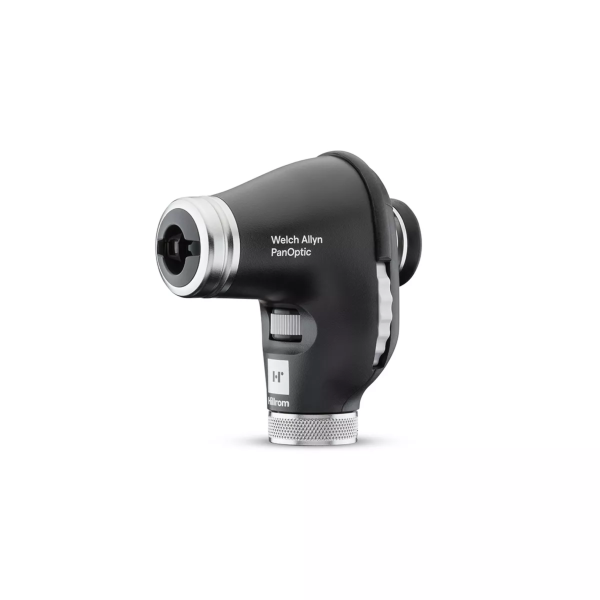

The Welch Allyn PanOptic Basic and PanOptic Plus Ophthalmoscopes offer a brighter, wider view. Redesigned with a familiar form and feel, this ophthalmoscope boasts a 20x larger viewing area along with long-lasting LED lamps, and DuraShock technology. The PanOptic Plus ophthalmoscope is compatible with our 3.5 V power sources or pair with the Lithium Ion Plus power handle for increased efficiency.
| PanOptic Basic Ophthalmoscope | PanOptic Plus Ophthalmoscope | |
| Model Number | 118-2 | 118-3 |
| QuickEye™ Alignment Technology | No | Yes |
| Warranty | 1 year | 5 years |
| Height x Width x Depth | 8 cm x 4.5 cm x 7.5 cm | |
| Weight | 130 g | |
| Apertures | Small, Large, Red Free, Slit, Fixation target, Cobalt Blue | |
| Diopter Range | -20 to +25 D | |
| Diopter Steps | -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2,
-1, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 15, 20, 25 |
|
| Crossed-linear Polarizers | Yes | |
| Lamp Type and Warranty | SureColor™ LED, 7 year warranty | |
| Color | Color rendering index (CRI): 95 typical; R9: 85 typical; Color temperature: 2700K – 3500K | |
| Lamp Life | 80+ years (typical) | |
| Field of view | 20 degrees | |
