Unique in innovation and function.

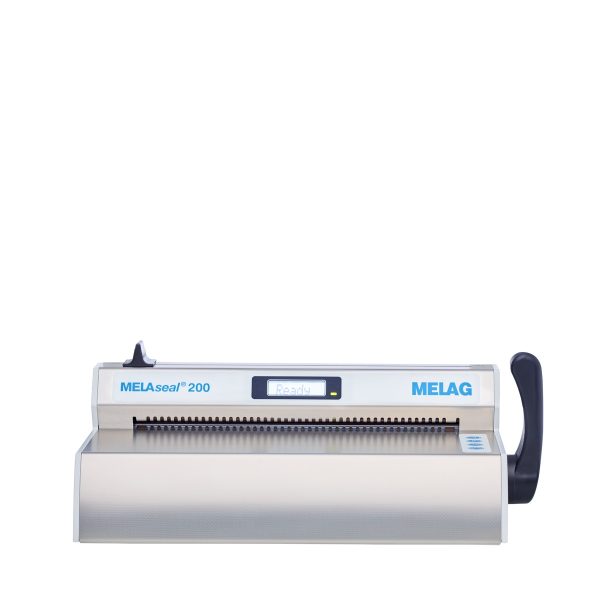

MELAseal® 200 is the most compact validatable sealing device of its class. The compact dimensions and the innovative MELAG concept of the bar sealing device ensure efficient instrument packaging in practice and clinic. The sealing device is ready to use within 90 seconds and allows the successive wrapping of instruments in only 3 seconds without pause.

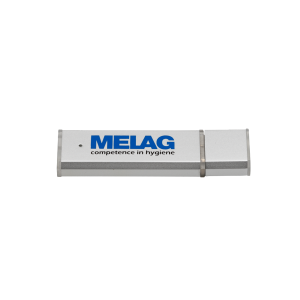

MELAseal® 200 automatically monitors the sealing parameters temperature, pressure and time to ensure maximum safety. The generated sealing logs can be transferred via USB ports in a quick and legally compliant way.
Perfection in the finest detail

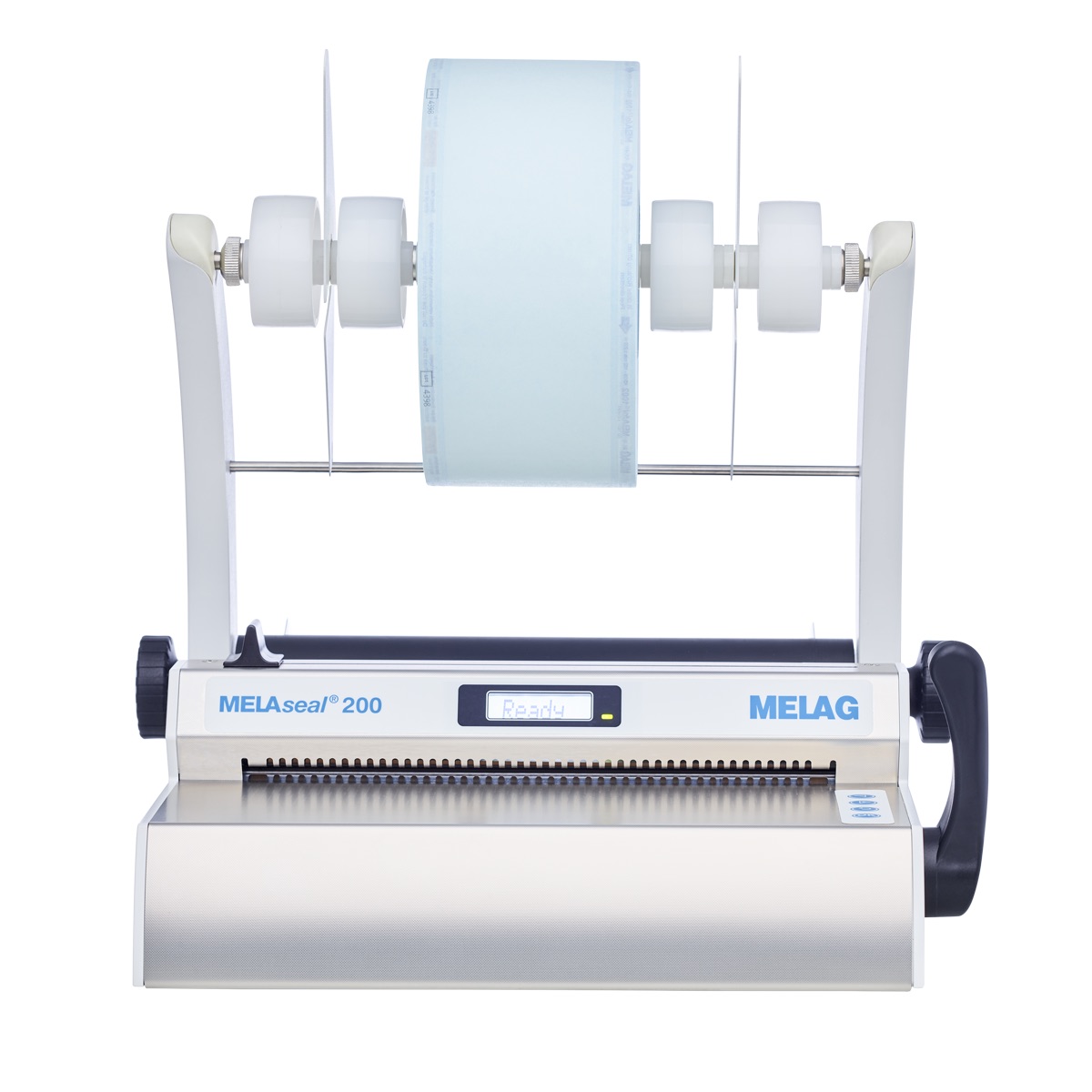

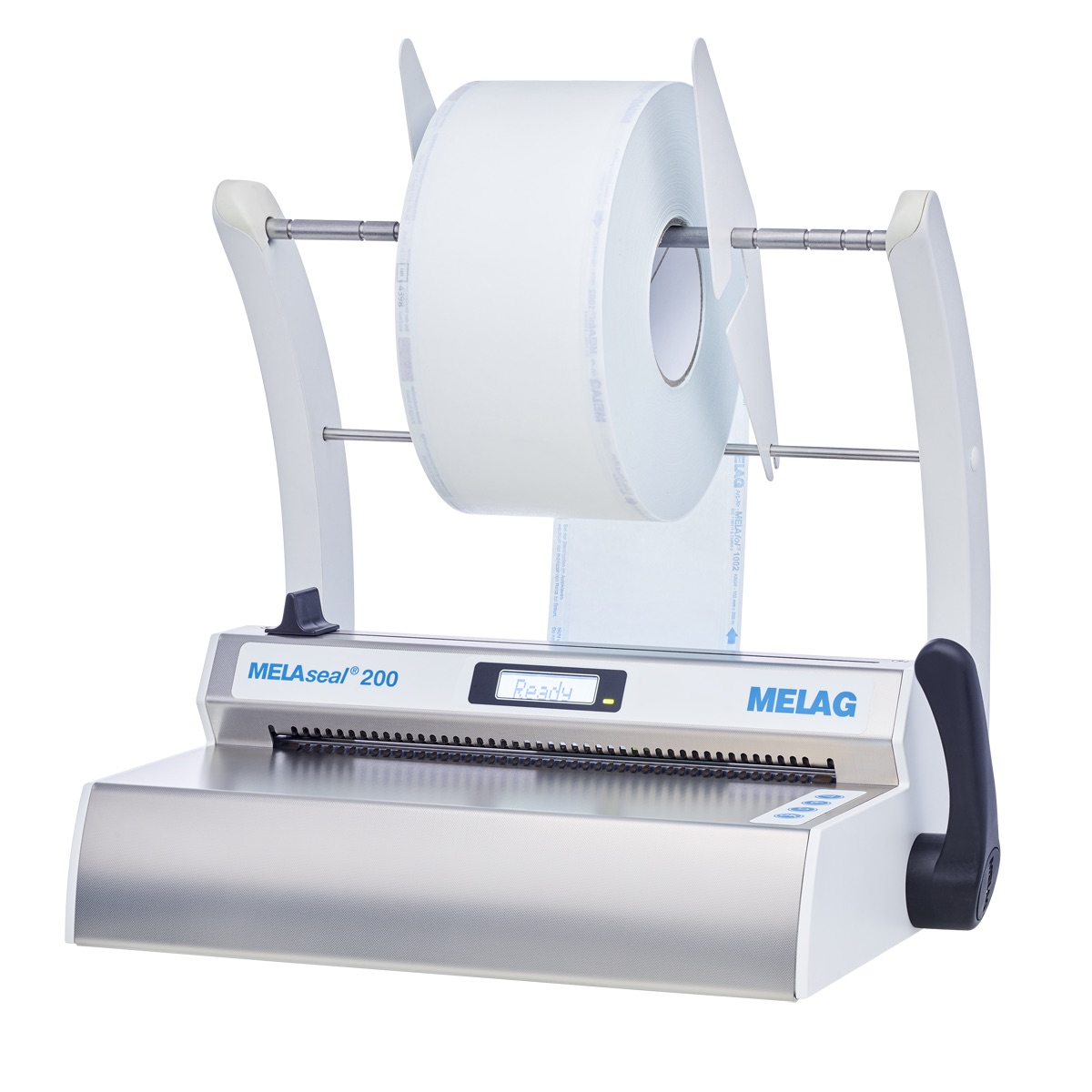

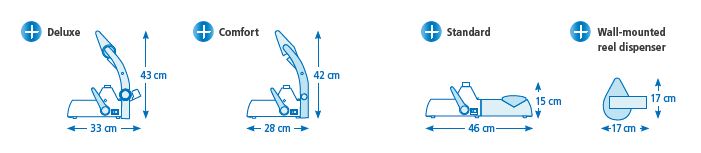

The variety of available reel dispensers adapts the sealing device to the needs of your decontamination room. You require even more comfort? The reel dispenser “Deluxe” sets new standards: Its integrated hand wheel provides full control over the transparent sterilization roll feed. There is no need for the time-consuming manual feeding process.
Features
Optional Accessories
| Device type | MELAseal 200 |
| Device dimensions (W x D x H) | 41.5 x 24 x 15 cm |
| Weight | 5.4 kg |
| Electrical connection | |
| Power supply | 200-240 V, 50/60 Hz |
| Electrical power | max. 300 W, average 100 W |
| Device fuse | 1x 2 A |
| Overheat protection | > 240 °C |
| Length of the power cable | 2 m |
| Ambient conditions | |
| Installation location | interior of a building |
| Max. altitude | 2000 m |
| Ambient temperature | 5-40 °C (ideal range 16-26 °C) |
| Relative humidity | max. 80 % at 31 °C, max. 50 % at 40 °C (decreasing in linear fashion in-between) |
| Sealing characteristics | |
| Sealing temperature range | 100-210 °C |
| Sealing force | 200 N ± 15 % (factory settings, fix) |
| Heating duration (from 25 °C to 180 °C) | approx. 90 s |
| Sealing duration | min. 3 s (factory settings, fix) |
| Seal seam width | 10 mm |
| Seal seam length | max. 27.5 cm |
