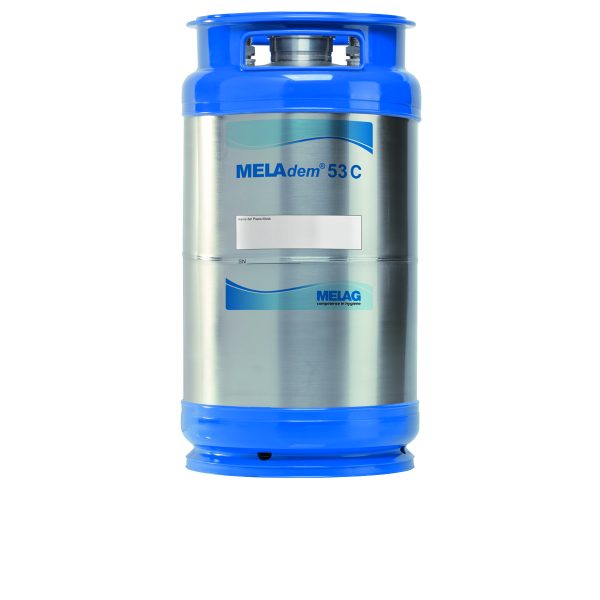

The MELAdem 53 C works in accordance with the tried and tested ion exchange procedure, generating high-quality demineralized water for the cleaning, disinfection and sterilization process. It has been conceived to satisfy a requirement for large-volumes of aqua dem e.g. for the supply of the Cliniclave, MELAtherm and one or more practice steam sterilizers. The scope of delivery consists of two high-value cartridges filled with regeneratable resin, one of which is connected to the steam sterilizer and/or the MELAtherm.
| Product type | MELAdem 53 C |
| Product dimensions | |
| Height | 45 cm
(approx. 49.5 cm incl. connection kit) |
| Diameter | 24 cm (26 cm incl. water inlet hose) |
| Weight (incl. mixed-bed resin) | 14 kg (per mixed-bed resin cartridge) |
| Connections | |
| Exterior connection | G 3/4“ |
| Mixed-bed resin cartridge | |
| Amount of resin (when filling)*) | 15 l |
| Capacity per cartridge
(depending on the water hardness and the conductivity of the local tap water at max. 30 ÎĽS/cm) |
at 10 °dH: 2100 l
at 20 °dH: 960 l at 25 °dH: 650 l |
| Max. throughflow volume | 800 l/h |
| Resulting water quality | |
| Conductivity of the distilled water | 1-5 µS/cm |
| Cold water | |
| Admissible entry temperature of the water | 5 °C to max. 40 °C |
| Min. water pressure | 1.5 bar |
| Max. water pressure | 10 bar |
*) The level decreases due to mechanical influences (e.g. transport) and consumption.
