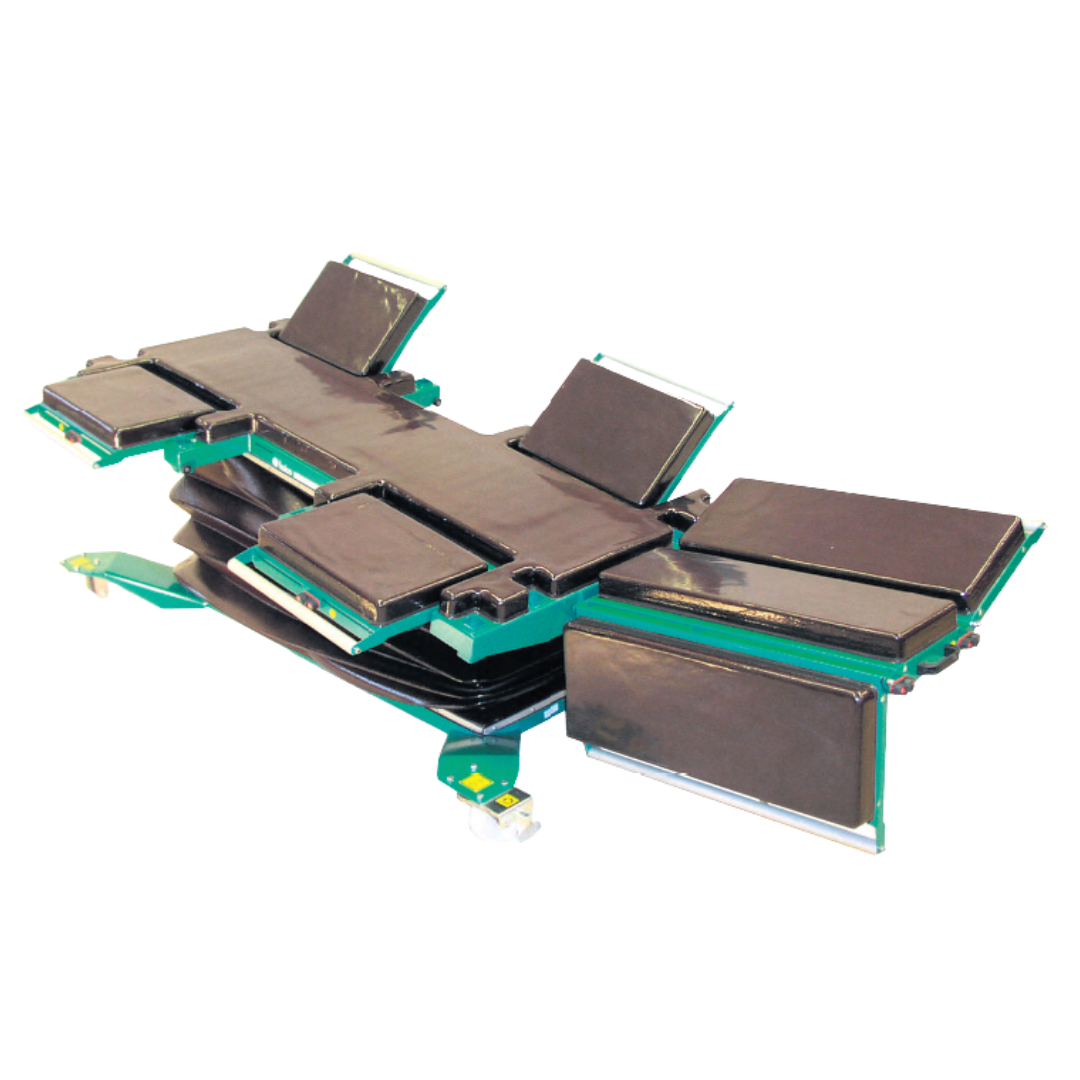

HAICO SURGERY 2 EQUINE SURGERY TABLE

210116

The Haico brand of equine surgery tables provide unsurpassed quality and longevity. Designed in conjunction with equine surgeons, the table boasts many features to ensure patient stability, position and comfort, while providing surgeons and nurses with easy patient loading and positioning throughout surgery.

The Surgery II table features a 2-way longitudinal pelvic tilt ± 25°, gas hydraulic adjustable head supports that adjust ± 25° (these are also removable), and gas hydraulic adjustable side panels. The table also features 5 cm close-cellular padding and lockable wheels.

The table has a height adjustment from 32 cm upto 112cm to ensure the surgeon is always in an optimal position relative to the patient.

The middle panels can also be removed and added to the ends to create more length to the tabletop should it be required. The 4 side panels are gas hydraulic and fully adjustable. The table also features 5 cm close-cellular padding and lockable wheels.

The Surgery II comes with leg supports, 2 horizontal bars,  4 vertical bars, infusion bottle attachment, self-locking hold down clamps , a small colon tray,  velcro straps and anaesthetic hose support. Lastly, the Surgery II also comes with a wall mounted stand for the accessories to be stored and accessed easily when required.

Please refer to the Haico table accessories list under “Resources” for a concise list of the inclusions and optional extras.

Specifications

Dimensions

  • Table: 290 × 140 cm

  • Extended length: 340 cm

  • Head support of the table: 90 × 100 cm

  • Width of the table (excluding side panels): 50 cm

  • Side panels, table: 50 × 35 cm

  • Side panels, head support: 85 × 35 cm

  • Wheels: Ø 15 cm

  • Padding thickness: 5 cm

  • Weight: 470 kg


Adjustability

  • Minimum height: 32 cm

  • Maximum height: 112 cm

  • Pelvic angle: +25°

  • Head support angle: +25°


Loading

  • Maximum load: 1200 kg

  • Lifting time: 30 sec


Electric Equipment

  • Operating voltage: 12 V

  • Battery type: Service-free lead acid, cyclic application

  • Battery capacity: 2 × 42 Ah

  • Automatic battery charger output: 12 V 6 A

  • Charger input: 110 V US model / 240 V AC (50–60 Hz)

  • Battery charging time: 6 hrs

  • Full battery lifespan: 50–100 lifts

  • Charging use: Table can be used while charging


Surface Coating

  • Zinc plated, powder-painted frame
