EDAN X8 VET MULTIPARAMETER MONITOR
EDAN X8 VET MULTIPARAMETER MONITOR - Image 2
EDAN X8 VET MULTIPARAMETER MONITOR - Image 3
EDAN X8 VET MULTIPARAMETER MONITOR - Image 4
EDAN X8 VET MULTIPARAMETER MONITOR - Image 5
EDAN X8 VET MULTIPARAMETER MONITOR - Image 6

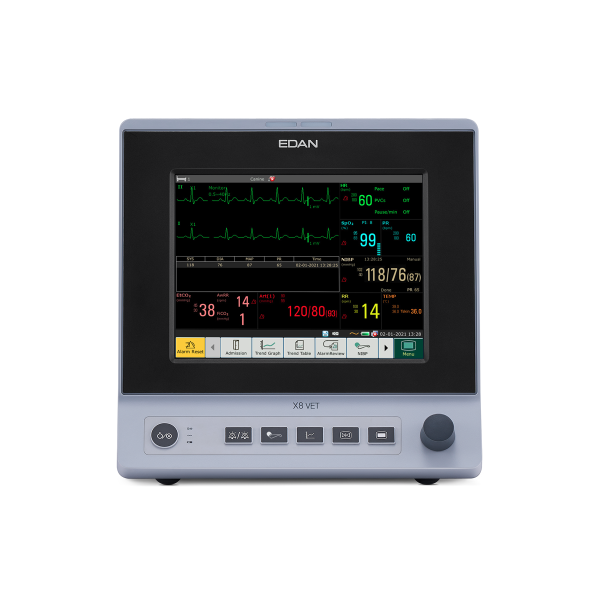

EDAN X8 VET MULTIPARAMETER MONITOR

192640

Quality care for vet patients

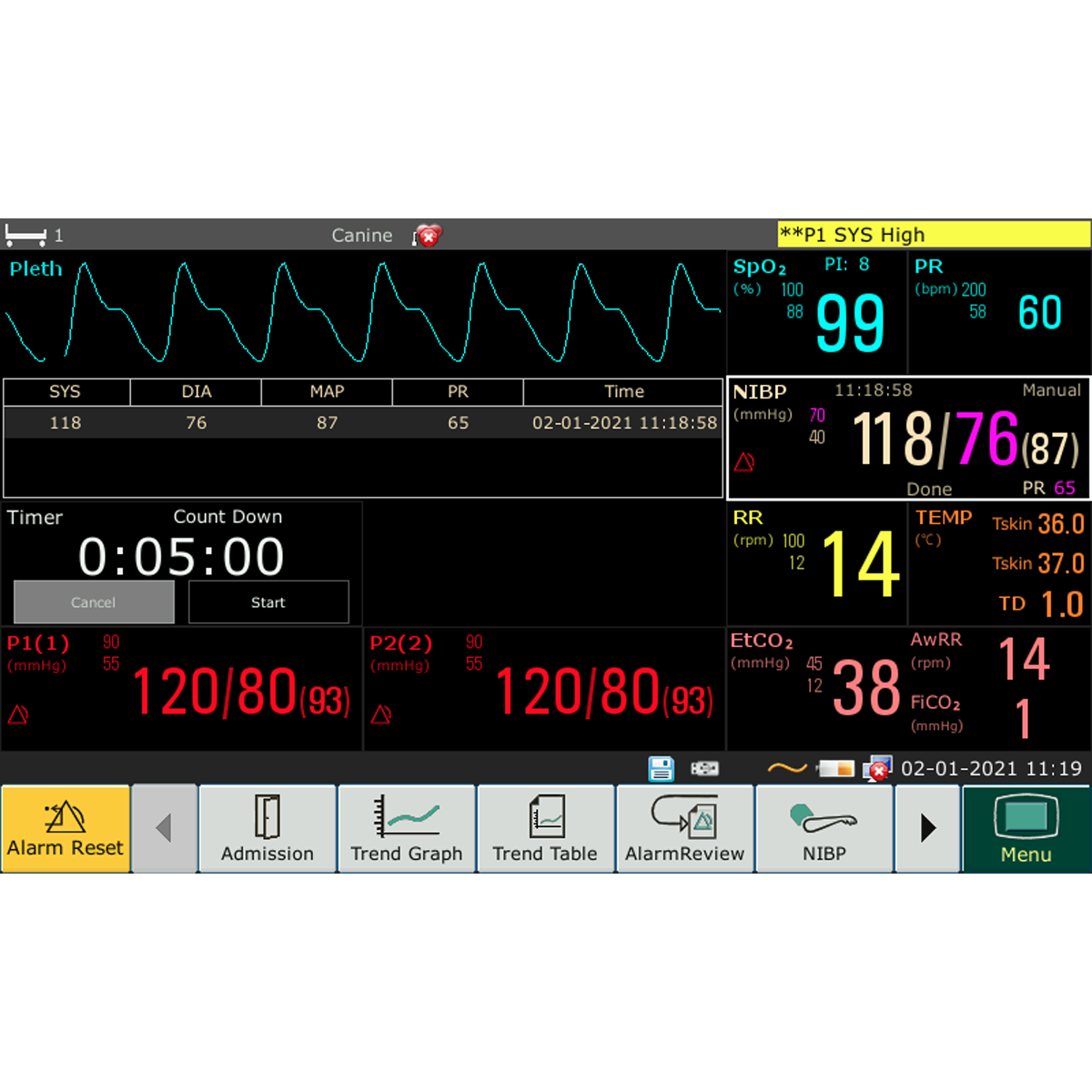

Introducing the ultra-slim compact design and full touch screen capability, X VET series monitor provides an optimized operation experience for veterinary technicians. Together with clinical-originated technologies and accessories, the X VET series veterinary monitor fulfills your primary requirements in various sceneries for vet patients.



SpO2

  • iMATTM algorithm with outstanding motion resistance and low perfusion resistance performance.
  • Reference reading of Perfusion index (PI) according to perfusion changes. Improved shape design of sensor for stable SpO2 readings.

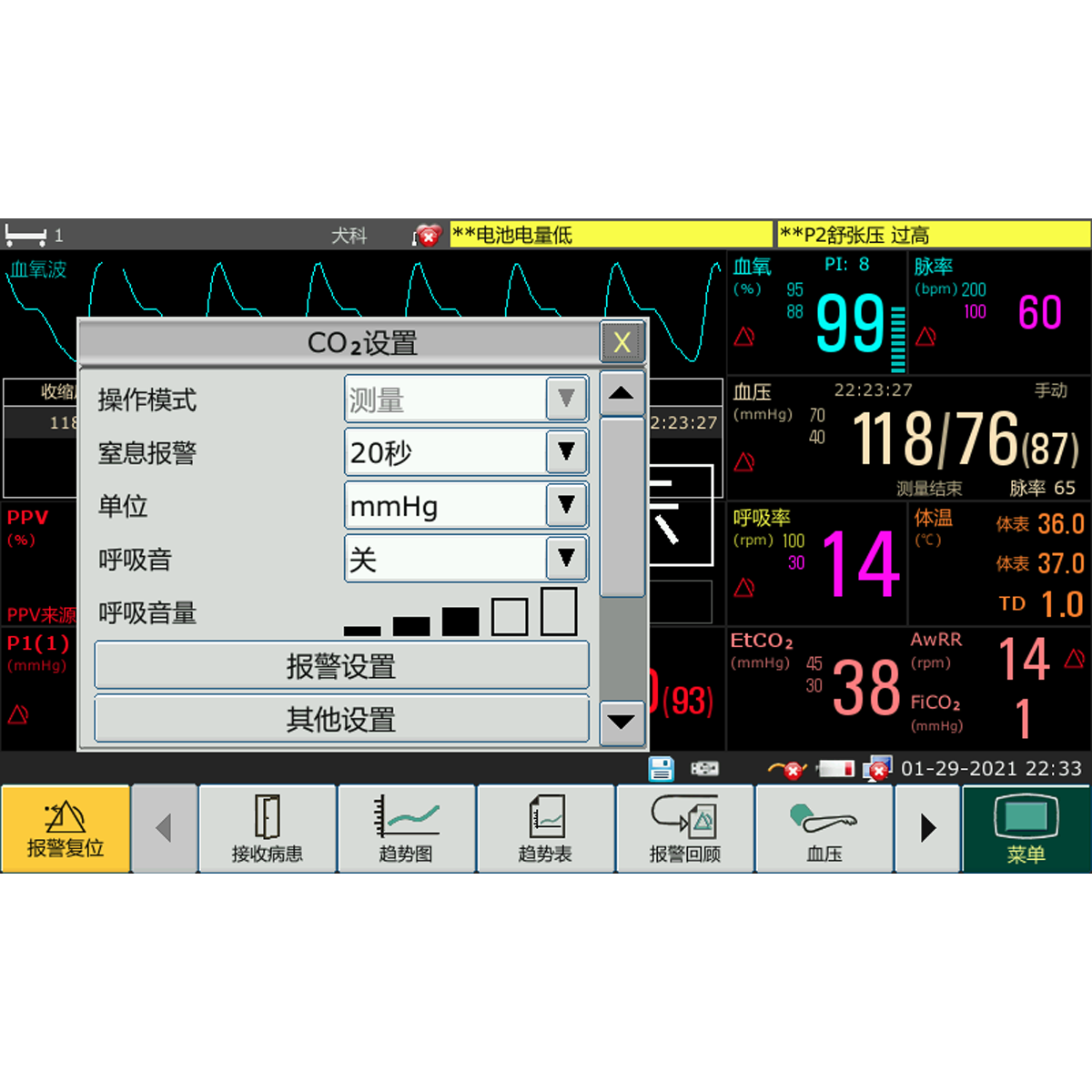

EDAN G2 CO2 (Sidestream)

  • Superior water trap design, prevent monitor from humidity and damage.
  • iCARB® algorithm with intelligent CO2 pseudo wave identification.
  • Unique breath tone indicates real-time changes of respiratory system.

ECG + TEMP

  • Auto lead placement detection to reduce the false alarms.
  • Customized filter for better ECG waves and measurements.
  • Industry leading iSEAPTM algorithm with auto-detection of 33 types of arrhythmias. Specialized esophageal probes for ECG and core body temperature monitoring.

NIBP

  • Dual dust filter design makes no blockage inside and provides accurate NIBP readings.
  • Unique cleaning mode for routine maintenance.
  • iCUFSTM algorithm with smart deflation technology.
  X8 X10 X12
Touch Screen Size 8” 10” 12.1”
Resolution 800×600 800×480  800×600
Wave Forms Up to 13
Dimensions 236mm W x 236mm H x 147mm D 261mm W x 246mm H x 146mm D 306mm W x 309mm H x 151mm D
Weight <2.4kg <2.6kg <3.5kg
Voltage 100V – 240V
Current 1.4A to 0.7A
Frequency 50Hz/60Hz
Battery 2550mAh to 5100mAh
SPO2
  X8 X10 X12
Measuring Range 0% to 100%
Resolution 1%
Data update period 1 s
Accuracy



 ±3% (70% to 100% SpO2)
Undefined (0% to 69% SpO2 )
Perfusion Index Measuring Range 0-10
Perfusion Index Resolution 1



Pulse Rate
  X8 X10 X12
Spo2 Measuring Range 25 bpm to 300 bpm
Spo2 Accuracy ±2 bpm
NIBP Measuring Range 40 bpm to 240 bpm
NIBP Accuracy ±3 bpm



Respiration
  X8 X10 X12
Measuring Range 0rpm to 150rpm
Accuracy 6 rpm to 150 rpm: ±2 rpm, 0 rpm to 5 rpm: not specified



Co2
  X8 X10 X12
Measuring Parameters EtCO2, FiCO2, AwRR
Unit mmHg, %, kPa
EtCo2 Range 0mmHg to 150mmHg
FiCO2 Range 0mmHg to 50mmHg
AwRR Range 2 rpm to 150 rpm
Warm Up Time Display waveform within 20 s, Reach the design accuracy within 2 minutes.
Response Time <4s



ECG
  X8 X10 X12
Lead Mode

3-Electrode: I, II, III

5-Electrode: I, II, III, aVR, aVL, aVF, V
Gain Selection

1.25 mm/mV (×0.125), 2.5 mm/mV (×0.25), 5 mm/mV (×0.5),

10 mm/mV (×1), 20mm/mV (×2), 40 mm/mV (×4), AUTO gain
Sweep Speed 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
Recovery time after defibrillation <5 s
ESU Protection Cut mode: 300 W, Coagulation mode: 100W



Temp
  X8 X10 X12
Channels 1 2 2
Position Skin, Oral or Rectal
Measuring Range 0.C – 50.C
Accuracy ≤ ±0.2°C
Transient Response Time ≤ 30 s



2 Year Warranty on Unit 1 Year Warranty on Sensors and Cables
User Manual
Data Sheet
Login for pricing
Login for pricing

Request a quote or more information​ about this product
