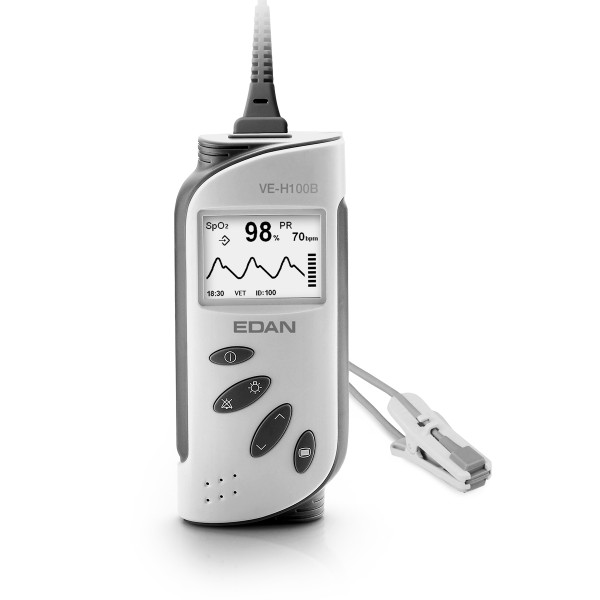

Designed to be pocket-size oximeters, the VE-H100B model can be easily carried and used everywhere. With AA batteries, the device can continuously work up to 48 hours.
Features
Includes
| Classification | |
| Type of Protection | Internally power equipment (on battery power) |
| EMC Compliance | Class B |
| Degree of Protection | Type BF-Applied Part |
| Mode of Operation | Continuous |
| Enclosure Degree of Ingress | Protection IPX2 |
| Size and Weight | |
| Size | 160 L x 70 W x 37.6 H (mm) |
| Weight | 165 g (without batteries) |
| Environment | |
| Temperature | Working 5 C~40 C |
| Storage/Shipping-20 C~55 C | |
| Humidity | Working 25%~80% (Non-condensing) |
| Storage/Shipping 25%~93% (Non-condensing) | |
| Display | |
| H100B LCD | 128mm x 64mm |
| Charger Stand | |
| Input Voltage | 100 to 240V AC, 50/60 Hz |
| Output Voltage | 6 V DC |
| Output Current | 0.8 A |
| Output Power | 6.4 W |
| Batteries | |
| Rechargeable Battery Type | Ni-MH Rechargeable Battery Package |
| Quantity | 1 |
| Total Rated Voltage | 4.8 V |
| Capacity | 1800 mAh |
| Typical Battery Life | 30 hours |
| Charge Time | 2.5 hours to 80% |
| 4 hours to 100% | |
| Replaceable Battery Type | Alkaline Batteries |
| Typical Battery Life | 4 pieces 1.5 V AA 48 hours |
| Measuring Parameter Specification | |
| SpO2 | 0-100% |
| PR | 25-300 bpm |
| SpO2 Accuracy | Adult (Pediatric) +2% (70%-100%) |
| Neonate +3% (70%-100%) | |
| Pulse Rate Accuracy | Adult/Pediatric +3 bpm |
| Neonate +3 bpm | |
| SpO2 Resolution | 1% |
| PR Resolution | 1 bpm |
