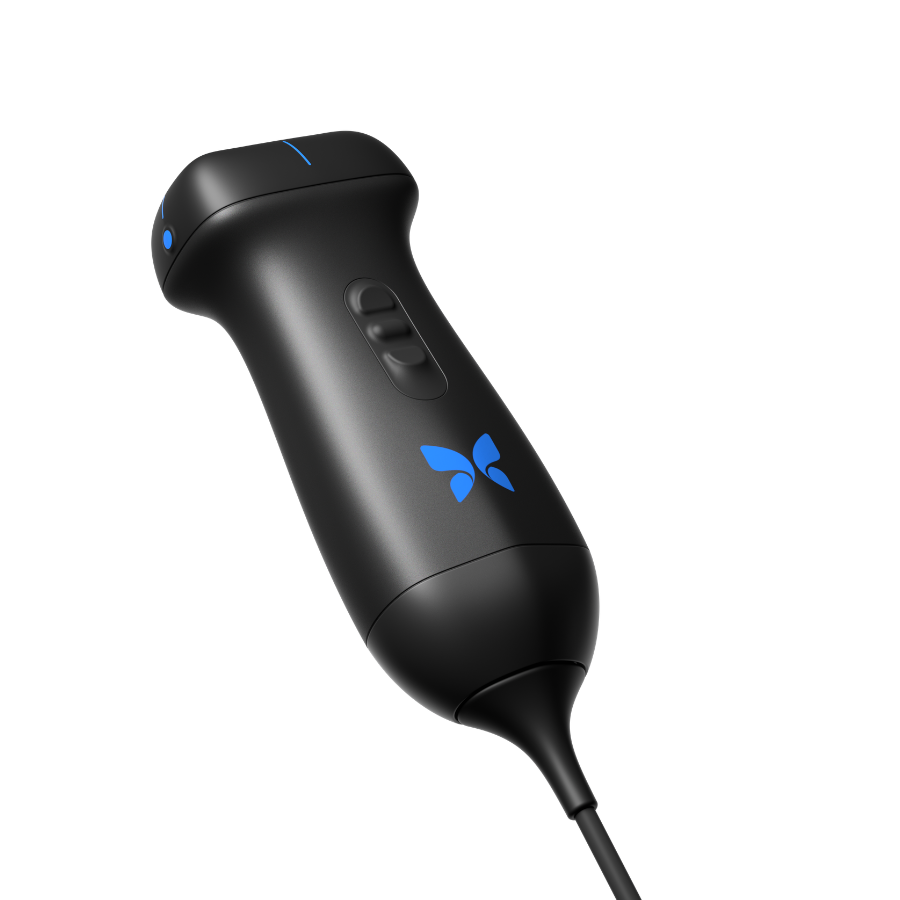

The Butterfly iQ3™ Vet is a portable, handheld veterinary ultrasound designed to deliver advanced diagnostic imaging wherever you work. With a 1–12 MHz frequency range, up to 35 cm imaging depth and a range of imaging modes, it provides versatile ultrasound imaging for small animal, large animal and equine applications. From abdominal, cardiac and lung examinations to equine musculoskeletal imaging, the iQ3 Vet combines advanced imaging capabilities with a lightweight, single-probe design. Color Doppler, Power Doppler, Pulsed Wave Doppler, Tissue Harmonic Imaging and Biplane Imaging™ provide comprehensive imaging capabilities, while tools such as Auto B-line Counter and Needle Viz™ help streamline examinations.
Compatible with select iOS and Android devices, the iQ3 Vet brings portable veterinary ultrasound to the clinic, farm or field.
Compatible with select iOS and Android devices, with PIMS and PACS connectivity and DICOM 3.0/PDF export.

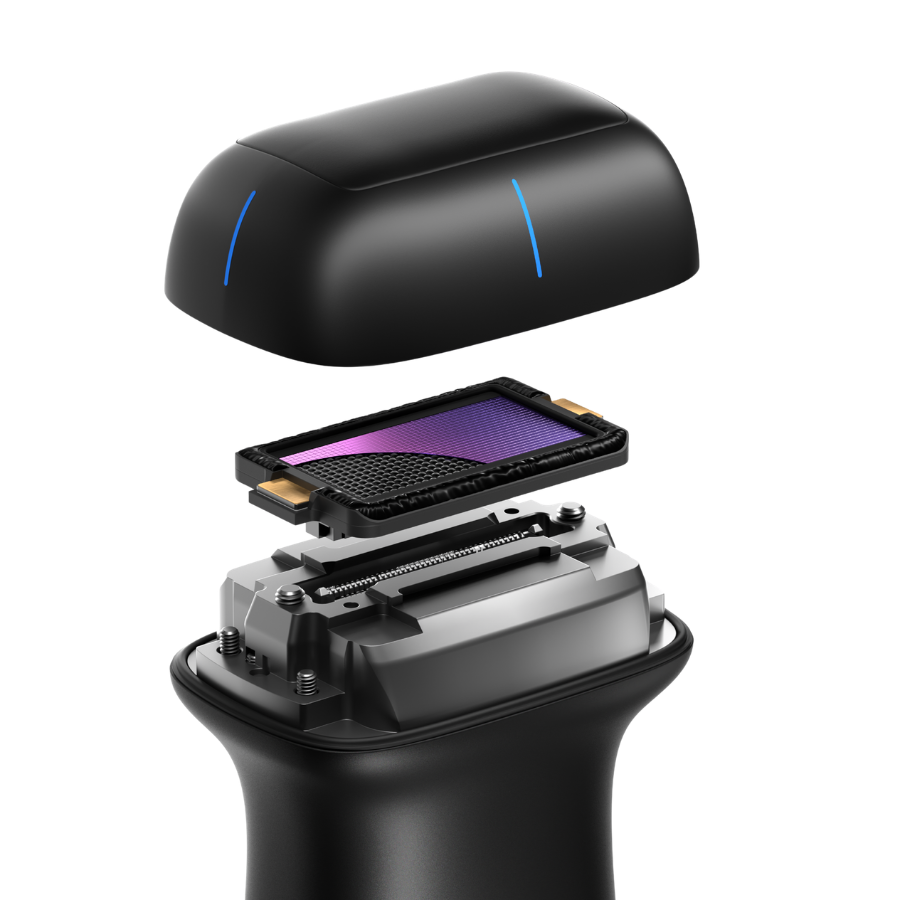

| Technology | Ultrasound-on-Chip™ Capacitive Micromachined Ultrasonic Transducer (CMUT) adhered to CMOS |
| Dimensions | 152 × 52 × 37 mm |
| Weight | 300 g |
| Frequency Range | 1–12 MHz |
| Probe Types | Linear, Convex, Phased |
| Maximum Imaging Depth | 35 cm |
| Minimum Imaging Depth | 1 cm |
| Connectivity | iOS and Android |
| Charging Power | 100–240 V |
